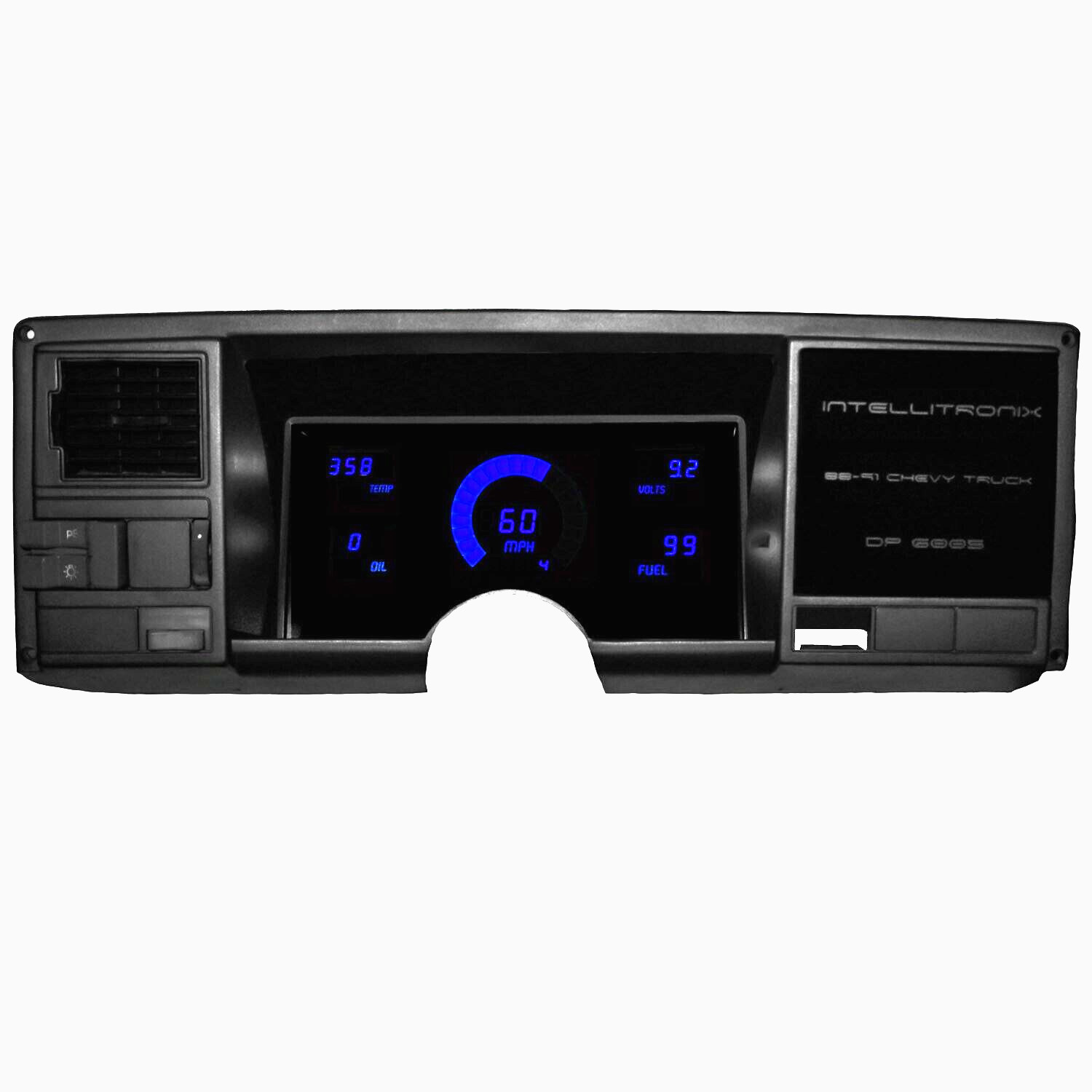

Upgrade your Chevy truck with a modern digital instrument cluster from Intellitronix. This blue LED gauge panel is designed to fit 1988-1991 Chevy trucks and comes with temperature, speedometer, fuel gauge, oil pressure gauge, tachometer/rev counter, and a numeric digital display with a maximum speed value of 255 MPH. Made in the USA with high-quality materials such as fiberglass, copper, and acrylic, this vintage part is illuminated with a backlit feature and comes with a lifetime manufacturer warranty. The fit to OEM size and style will perfectly fit within the original housing/bezel of your truck. Mounting hardware is included for easy installation. Buy now and experience accurate and stylish readings!
The 1988-91 Chevy Truck has the look and feel of elegance and willmake you the envy of all Chevy truck lovers with your new 81-913 Chevy TruckLED Digital Replacement Gauge Panel by Intellitronix. Complete with direct fitprinted circuit boards, custom fit "smoked" plexiglass faceplate,universal temperature, oil pressure, and instructions for installation.
The speedometer reads up to 255 MPH and features an odometer, tripmeter, one-button calibration, regardless of tire size, gear ratio, ortransmission, and 0–60-time, 1⁄4-mile elapsed time, and high-speed recall, allwith the push of a button. Hooks up directly to your vehicles supplied VSS(vehicle speed sender)
Tachometer reads 0-9900 RPM in 100 RPM increments.
Water Temperature displays 100-300°F rangewith sender S8013 included. Please specify bushing size for sender as wenormally send a 1/2 inch one.
Oil Pressure displays 0-100 PSI range. Oilpressure sender included.
The voltmeter displays a 7.0-25.5 volts range,and no sending unit is required.
Fuel Level displays 0-99% range in 1%increments and works with existing GM fuel level sending unit.
This board features a high beam indicator andreuses the factory turn signals.
Note: When installed the gauge cluster maydisable the cruise control system.
Easy Install, Lifetime Warranty, Great Price, & Gauges foryour very special classic vehicle.
BEZEL NOT INCLUDED
FEATURES:
AVAILABLE COLORS: White, Red, Blue, Tealand Green
