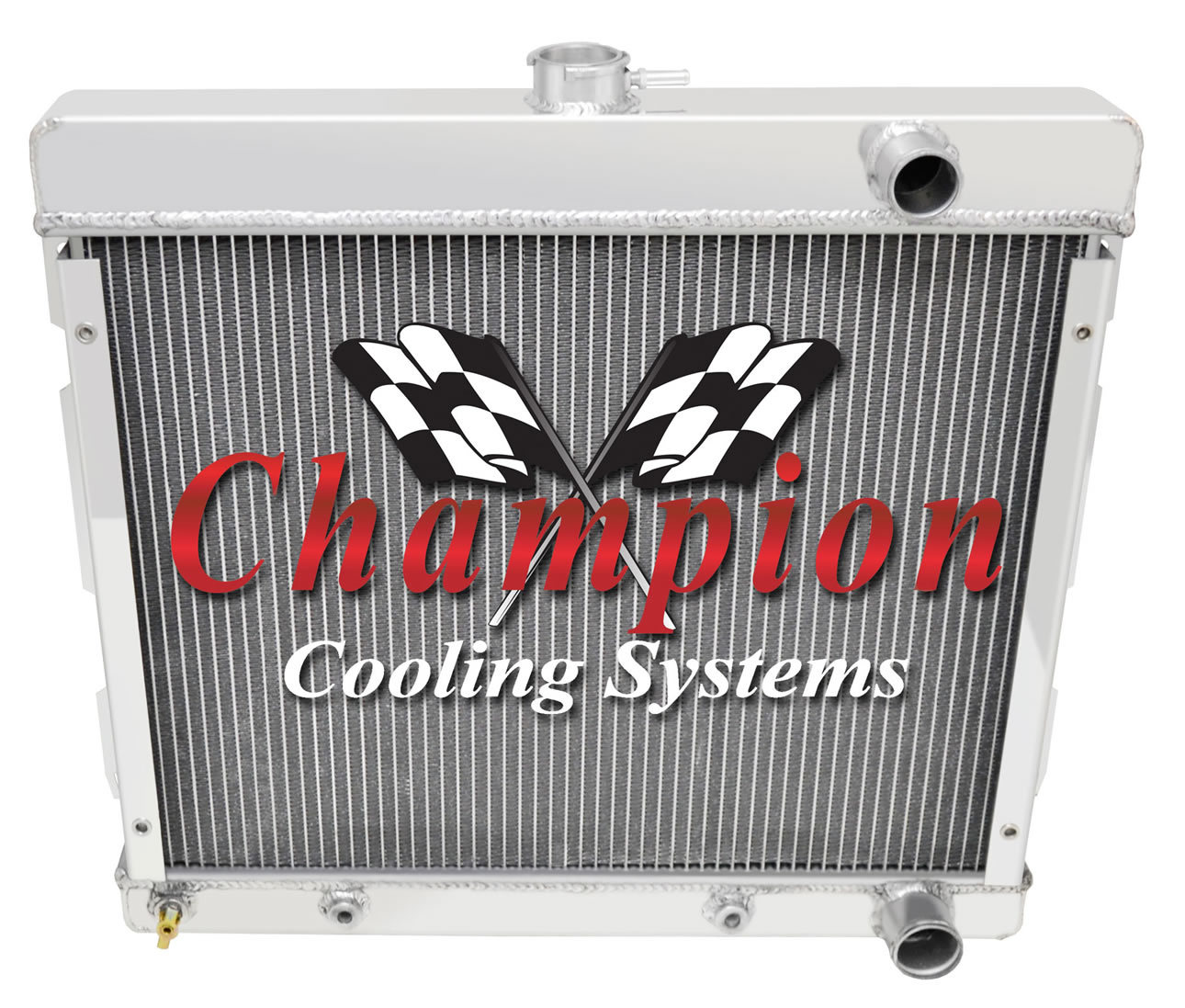

1969 - 73 Dodge Dart / 70 71 Polara Champion 3 Row Aluminum Radiator CC527 For Sale - New and Used

Champion Cooling radiators are tig welded with aircraft grade aluminum. Every radiator comes with a limited lifetime warranty so you can buy with confidence! Product Specifications: Core (H x W): 17" x 22" - Overall (H x W): 23" x 25" - Hose Locations (In x Out): Pass x Pass - Hose Fittings (In x Out): 1.5" x 1.5" - TOC: 1/8-27NPTPlease click on the "Read more" link below to view a complete item description with product videos and additional items to upgrade your cooling system.

PART INFORMATION Shipping Payment Policies Contact Us Part Information Related Items Need A Different Set Up? (Click A Photo Below) Genuine Champion Cooling Systems Part #CC527 This radiator is designed for a L6 engine. Features

• Higher density core: cooling rows are spaced 3/8" apart: giving you 25% more rows within the core than other aluminum radiators sold on and 35% more rows than OEM copper.
• Aluminum dissipates heat more efficiently than copper or brass.
• 14-16 cooling fins per inch (42 per square inch) giving you approximately 1500 more cooling fins than other aluminum radiators and approximately 3000 more than OEM copper radiators.
• Lighter weight.
• Outperforms other 2, 3 and 4 row copper radiators.
• High performance appearance.
• You get "BIG BLOCK COOLING" and "PEACE OF MIND" when you drive your car with a Champion Cooling Systems radiator.
• You could easily spend $400 - $1,000 more for a radiator of similar quality.

Specifications

• Down Flow Or Cross Flow Type: Down Flow
• Mounting Type: Bracket
• Tank Material: Aluminum
• Core Material: Aluminum
• Overall Height: 23
• Overall Width: 25
• Core Height: 17
• Core Width: 22
• Inlet Location: Passenger
• Inlet Diameter: 1 1/2
• Outlet Location: Passenger
• Outlet Diameter: 1 1/2
• Core Row Quantity: 3 Row
• Transmission Oil Cooler Fitting Type: 1/8-27NPT
• Internal Transmission Oil Cooler: Yes
• Filler Neck Attached: Yes
• Core Thickness: 2 1/4
• Core Tube Width: 0.63
• Tank Width: 2.625

This package includes a 3 Row All Aluminum Radiator. Shipping Shipping Our radiators are hand packed in the factory box and Shipped via FedEx. Payment Guarantee Policies Contact Us
