Product Type: Starter |
Replaces: S114-323B 6E5-81800-12 S114323B, S114-323C, S114323C |
- Starter Type: DD |
- Volts: 12 |
- Teeth On Drive: 9 |
- Rotation: Counterclockwise |
- Source: Aftermarket
Over 30,000 aftermarket & original parts Show navigation Hide navigation
- Visit Store
- Newly Listed
- Ending Soon
- On Sale
- Follow Seller

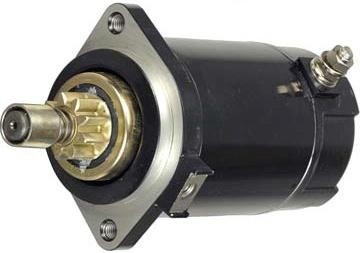

12V Starter 1984-2002 Yamaha Outboard 200HP S114-323B 6E5-81800-12
Replaces Part Numbers & Specifications
OEM PART NUMBERS:
• Hitachi: S114-323B, S114323B, S114-323C, S114323C
• Yamaha: 6E5-81800-12, 6E5-81800-12-00, 6E58180012, 6E5818001200
• Yamaha: 6N7-81800-01-00, 6N7-81800-10-00
• Sierra Marine: 18-6413
• Mercury Marine: 50-825095
• Prestolite: 20513554TBASPECIFICATIONS:
• Type: Starter - DD (Direct Drive)
• Unit Type: Hitachi
• Voltage: 12V
• Power: 1.1 kW / 1.47 HP
• Rotation: CCW (Counter-Clockwise)
• Teeth: 9
• Pinion OD: 28.5mm / 1.122 in
• Gear OD: 29.5mm / 1.161 in
• Mounting Hole 1: M8-1.25 ID Threaded
• Mounting Hole 2: M8-1.25 ID Threaded
• Mounting Hole 3: 8.8mm Unthreaded
• Overall Length: 222mm
• Weight: 6.905 lbs / 3.14 kgFITS YAMAHA OUTBOARD 200HP (1984-1996):
• 200ETL (1984-1990), 200ETLJD (1989-1990), 200ETX (1984-1990)
• 200TJR (1991-1995), 200TLR (1991-1996), 200TXR (1991-1995)FITS YAMAHA OUTBOARD C115/C150 SERIES:
• C115TLR (1991-1996), C115TXR (1992-1996)
• C150TLR (1996), C150TXR (1996)FITS YAMAHA OUTBOARD F40/F50 4-STROKE (1996-2002):
• F40TLR (1999), F50TJR (2001-2002)
• F50TLH (1996-1998), F50TLR (1996-2002)FITS YAMAHA OUTBOARD L SERIES (1986-1996):
• L130ETX (1989-1990), L130TXR (1991-1996)
• L150ETX (1986-1990), L150TXR (1991-1996)
• L200ETX (1986-1990), L200TLR (1995), L200TXR (1991-1996)FITS YAMAHA OUTBOARD P SERIES (1986-1996):
• P115TLR (1993-1996), P150TLR (1991-1996), P175TLR (1994-1996)
• PRO150L (1986-1990)FITS YAMAHA OUTBOARD S SERIES (1996):
• S115TLR, S115TXR, S130TLR, S130TRX, S150TLR, S150TSR, S175TXR, S200TXRFITS YAMAHA OUTBOARD T50/V6 (1985-2002):
• T50TLR (1996-2002), V6 Special (1985-1986)
Product Notice
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new. ApplicationsShippingPaymentsPolicies
YAMAHA OUTBOARD MOTORS - 200HP (1984-1996):200ETL:
• Yamaha 200ETL 200HP 2-Stroke Outboard - 1984, 1985, 1986, 1987, 1988, 1989, 1990200ETLJD:
• Yamaha 200ETLJD 200HP 2-Stroke Outboard - 1989, 1990200ETX:
• Yamaha 200ETX 200HP 2-Stroke Outboard - 1984, 1985, 1986, 1987, 1988, 1989, 1990200TJR:
• Yamaha 200TJR 200HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995200TLR:
• Yamaha 200TLR 200HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995, 1996200TXR:
• Yamaha 200TXR 200HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995YAMAHA OUTBOARD MOTORS - C115 SERIES (1991-1996):C115TLR:
• Yamaha C115TLR 115HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995, 1996C115TXR:
• Yamaha C115TXR 115HP 2-Stroke Outboard - 1992, 1993, 1994, 1995, 1996YAMAHA OUTBOARD MOTORS - C150 SERIES (1996):C150TLR:
• Yamaha C150TLR 150HP 2-Stroke Outboard - 1996C150TXR:
• Yamaha C150TXR 150HP 2-Stroke Outboard - 1996YAMAHA OUTBOARD MOTORS - F40/F50 4-STROKE (1996-2002):F40TLR:
• Yamaha F40TLR 40HP 4-Stroke Outboard - 1999F50TJR:
• Yamaha F50TJR 50HP 4-Stroke Outboard - 2001, 2002F50TLH:
• Yamaha F50TLH 50HP 4-Stroke Outboard - 1996, 1997, 1998F50TLR:
• Yamaha F50TLR 50HP 4-Stroke Outboard - 1996, 1997, 1998, 1999, 2000, 2001, 2002YAMAHA OUTBOARD MOTORS - L SERIES (1986-1996):L130ETX:
• Yamaha L130ETX 130HP 2-Stroke Outboard - 1989, 1990L130TXR:
• Yamaha L130TXR 130HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995, 1996L150ETX:
• Yamaha L150ETX 150HP 2-Stroke Outboard - 1986, 1987, 1988, 1989, 1990L150TXR:
• Yamaha L150TXR 150HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995, 1996L200ETX:
• Yamaha L200ETX 200HP 2-Stroke Outboard - 1986, 1987, 1988, 1989, 1990L200TLR:
• Yamaha L200TLR 200HP 2-Stroke Outboard - 1995L200TXR:
• Yamaha L200TXR 200HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995, 1996YAMAHA OUTBOARD MOTORS - P SERIES (1991-1996):P115TLR:
• Yamaha P115TLR 115HP 2-Stroke Outboard - 1993, 1994, 1995, 1996P150TLR:
• Yamaha P150TLR 150HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995, 1996P175TLR:
• Yamaha P175TLR 175HP 2-Stroke Outboard - 1994, 1995, 1996PRO150L:
• Yamaha PRO150L 150HP 2-Stroke Outboard - 1986, 1987, 1988, 1989, 1990YAMAHA OUTBOARD MOTORS - S SERIES (1996):S115TLR / S115TXR:
• Yamaha S115TLR, S115TXR 115HP 2-Stroke Outboard - 1996S130TLR / S130TRX:
• Yamaha S130TLR, S130TRX 130HP 2-Stroke Outboard - 1996S150TLR / S150TSR:
• Yamaha S150TLR, S150TSR 150HP 2-Stroke Outboard - 1996S175TXR:
• Yamaha S175TXR 175HP 2-Stroke Outboard - 1996S200TXR:
• Yamaha S200TXR 200HP 2-Stroke Outboard - 1996YAMAHA OUTBOARD MOTORS - T50 SERIES (1996-2002):T50TLR:
• Yamaha T50TLR 50HP 2-Stroke Outboard - 1996, 1997, 1998, 1999, 2000, 2001, 2002YAMAHA OUTBOARD MOTORS - V6 SPECIAL (1985-1986):V6 Special:
• Yamaha V6 Special 2-Stroke Outboard - 1985, 1986
