1\" Bore Chromoly Heim Rod Ends RH LH 2 Pair 1-1/4\"-12 w/ Bung 1.75\" OD .120 Wall:
$169.99

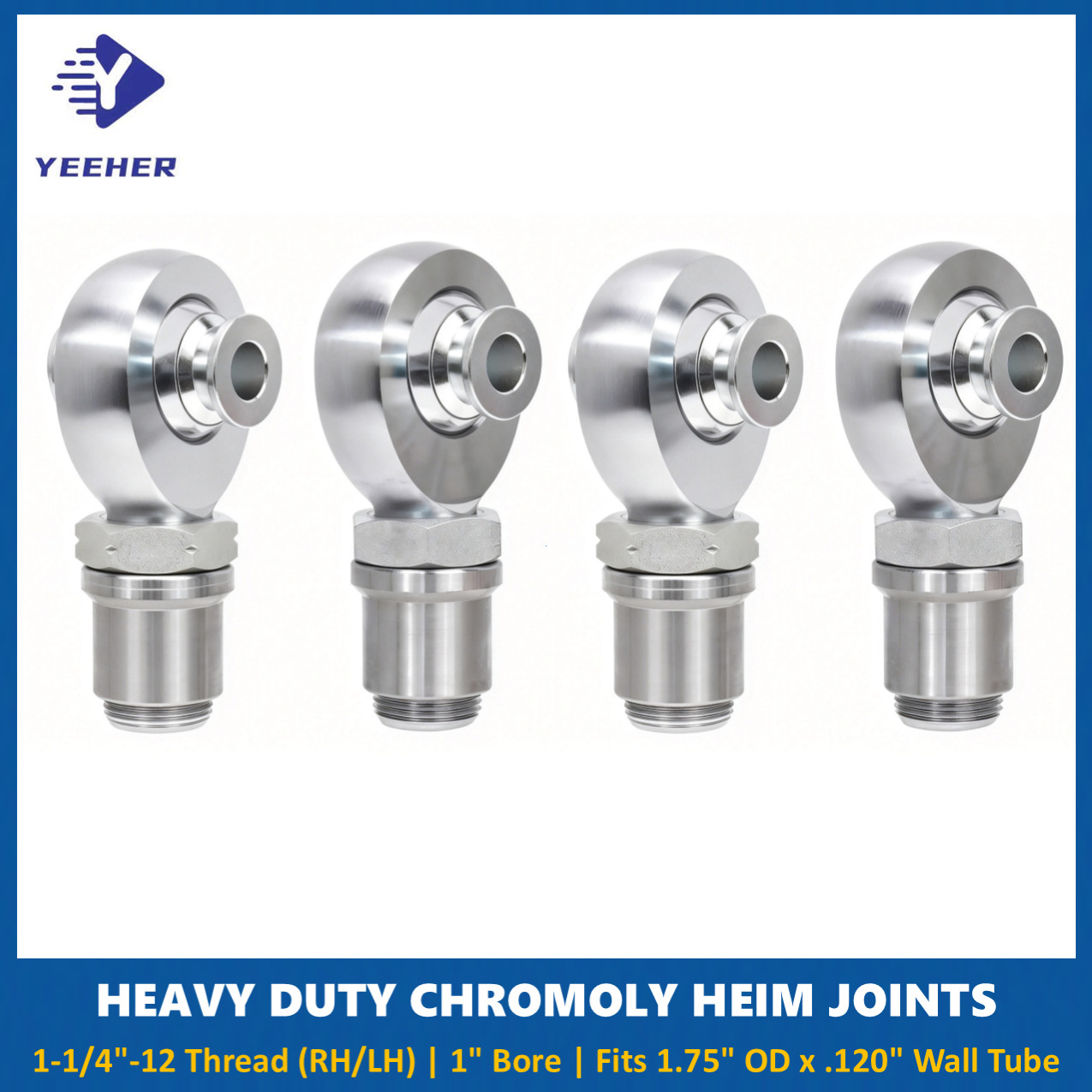

YEEHEER OFFROAD - 1\" Bore Chromoly Heim Rod Ends 2-Pair Set YEEHEER OFFROAD Heavy Duty Offroad Components 1\" Bore Chromoly Heim Rod Ends RH LH 2 Pairs 1-1/4\"-12 w/ Bung 1.75\" OD .120 Wall 2 PAIRS (2x RH & 2x LH COMPLETE KIT - 4 PACK) 📋 FABRICATION NOTICE: This package contains 2 Right-Hand (RH) and 2 Left-Hand (LH) Heim Joint kits (Total 4 Complete Sets) with Weld-in Bungs and High Misalignment Spacers. Ideal for dual steering links, 4-link suspensions, and full custom offroad chassis builds. Rod End Specifications (XMR16 & XML16) Quantity & Handing2x RH Thread (XMR16) & 2x LH Thread (XML16) - Total 4 Joints Material & ConstructionHeat Treated Chromoly Steel, Male Thread, Loader Slot Surface FinishHard Chrome Plated Ball Thread Size1-1/4\" - 12 tpi Ball Bore Diameter1.000\" Ball Width1.375\" (1-3/8\") Centerline Length4.125\" Thread Length2.125\" Radial Load Capacity72,000 lbs Weld-in Bung Specifications Quantity & Handing2x RH Thread & 2x LH Thread (Total 4 Bungs) MaterialHigh-Strength Carbon Steel Thread Size1-1/4\" - 12 tpi Fitment Tube SizeFits 1.75\" OD x 0.120\" Wall Tubing (1.50\" ID) High Misalignment Spacer Specs (HMS16-12) Quantity Included8 Pieces Total (2 Spacers Per Heim Joint) Material & FinishCarbon Steel, Silver Zinc Plated Joint Insert Diameter1.000\" (Inserts into 1\" Ball) Final Inside Bolt Hole0.750\" (3/4\" Bolt Hole) Product Features

Heat Treated 4130 Chromoly Steel Construction
Massive 72,000 lbs Radial Load Rating
Hard Chrome Plated Ball for Smooth Articulation
Precision Weld-in Tube Adapters Included (4 Pcs)
Zinc Plated Spacers for Superior Corrosion Resistance (8 Pcs)
Ideal for Custom Offroad Steering & 4-Link Suspensions

Store Policies RETURN POLICY

We offer a 30-Day Free Return & Replacement policy. If you ordered the wrong size or need a different model, our technical team is here to assist with a quick Replacement to get your project back on track. All returns must be in original, unused condition with all packaging included.

SHIPPING & WARRANTY

• Shipping: Fast dispatch from US domestic warehouse.
• Quality Check: Every Heim joint set undergoes strict tolerance testing.
• Installation: Professional welding and assembly recommended for safety-critical suspension systems.
